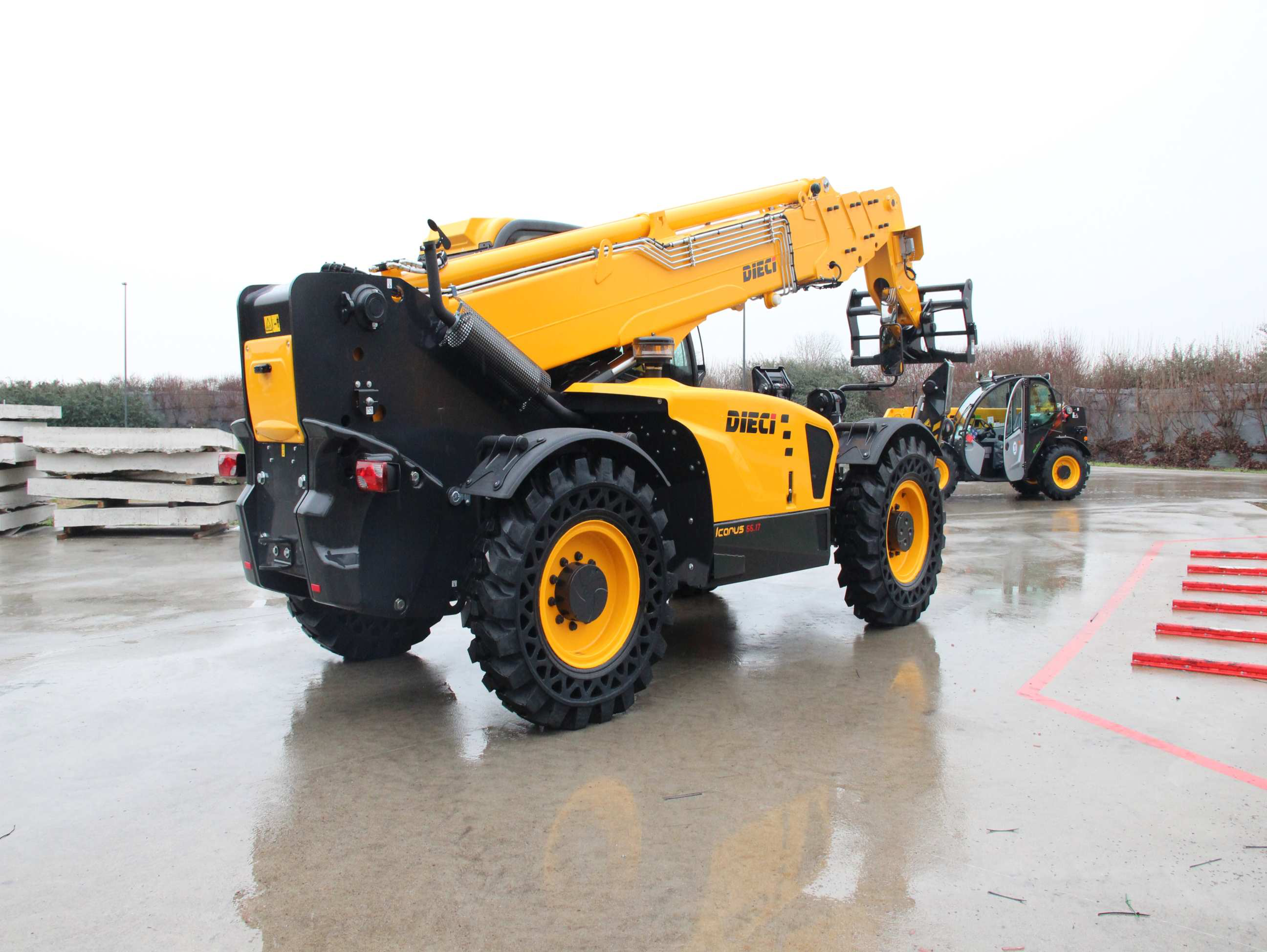

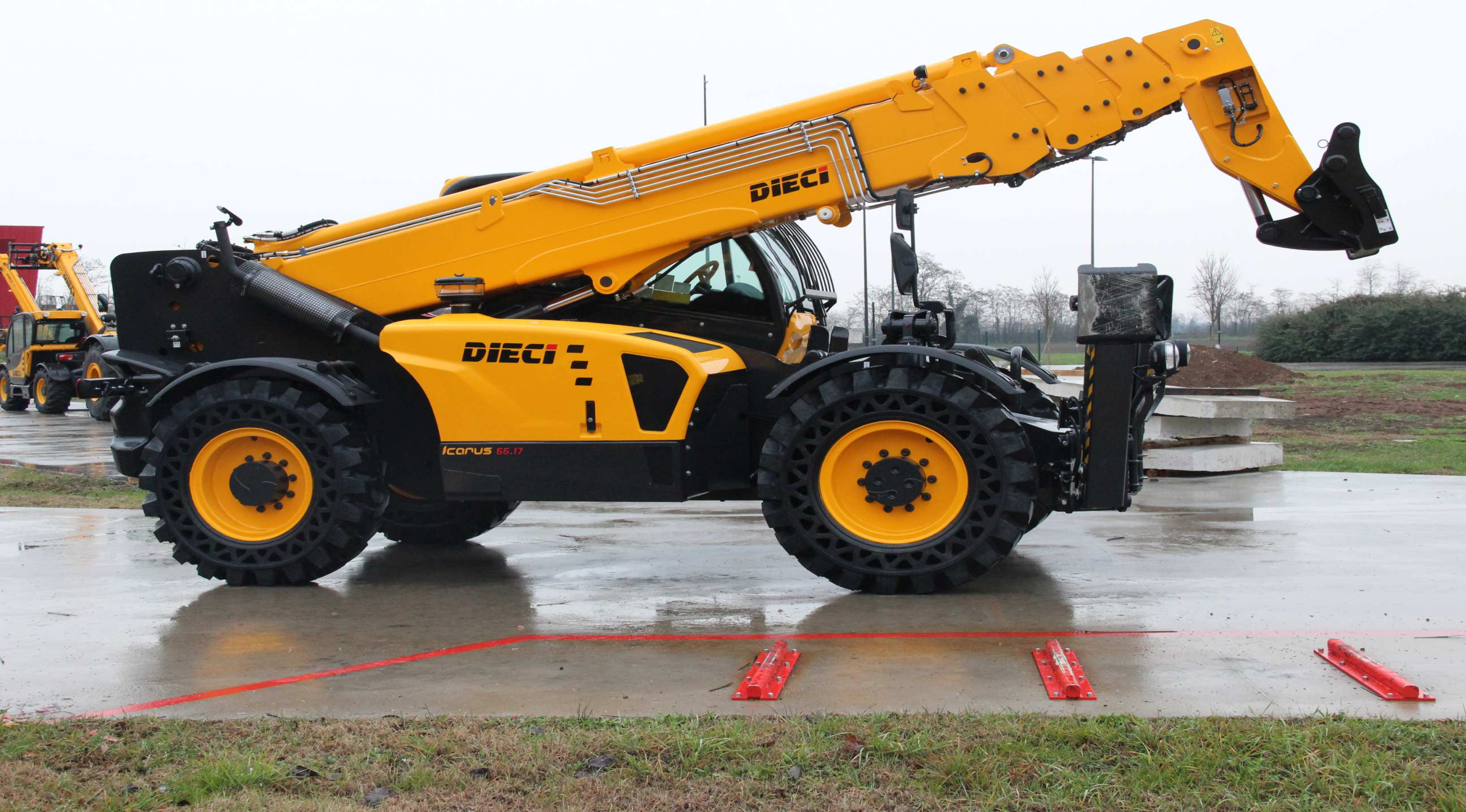

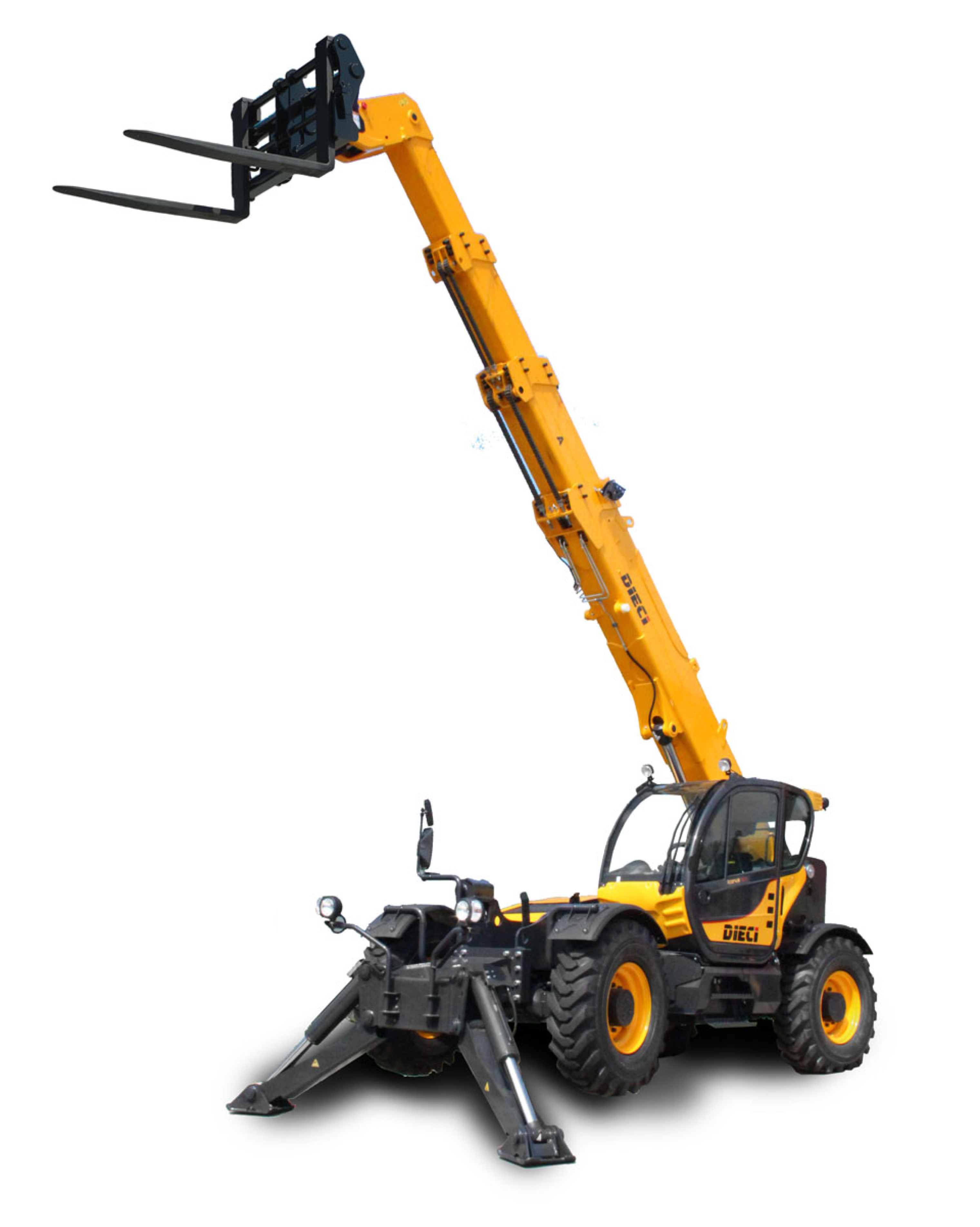

ICARUS
FIXED TELEHANDLER
The ICARUS family of telehandlers is ideal for large-scale projects in the construction and industrial sectors, offering exceptional strength, power, and impressive lifting heights.
| ICARUS 40.17 | ICARUS 55.17 | |
| ORIGIN | 🇮🇹 | 🇮🇹 |
| MAXIMUM CAPACITY | 4 000 kg | 5 450 kg |
| MAXIMUM LIFTING HEIGHT | 16.60 m | 17.03 m |
| MAXIMUM HORIZONTAL EXTENSION | 12.5 m | 13.80 m |
| PULL-OUT FORCE | 5 700 daN | 5 700 daN |
| TOWING FORCE | 7 300 daN | 10 461,5 daN |
| UNLADEN WEIGHT | 12 260 kg | 14 000 kg |
| MAX SPEED | 35 km/h | 30 km/h |
| ICARUS 40.17 | ICARUS 55.17 | |
| ENGINE BRAND | FPT | FPT |
| FUELING | Diesel | Diesel |
| NOMINAL POWER | 85.1 kW | 93 kW |
| RPM PER NOMINAL POWER | 2 600 rpm | 2 600 rpm |
| DISPLACEMENT | 3 769 cm3 | 4 485 cm3 |
| CONSUMPTION | 215 g/kWh | 215 g/kWh |
| COOLING SYSTEM | Liquid | Liquid |
| EMISSION STANDARD | Stage IIIA/Tier 3 | Stage IIIA/Tier 3 |
| ICARUS 40.17 | ICARUS 55.17 | |
| TRANSMISSION TYPE | Hydrostatic with variable displacement pump | Hydrostatic with variable displacement pump |
| HYDRAULIC PUMP CAPACITY | 130 L/min | 145 L/min |
| MAXIMUM OPERATING PRESSURE | 25.0 MPa | 25.0 MPa |
| HYDRAULIC SYSTEM | 174.0 L | 190.0 L |
| FUEL TANK | 120.0 L | 120.0 L |
| ICARUS 40.17 | ICARUS 55.17 | |
| HEIGHT FROM GROUND | 390 mm | 470 mm |
| MAXIMUM LENGTH | 6 275 mm | 6 580 mm |
| CAB HEIGHT | 2 550 mm | 2 570 mm |
| TIRE WIDTH | 2 360 mm | 2 440 mm |
| WHEELS CURVE RADIUS | 4 400 mm | 4 050 mm |
| STANDARD TIRES | 400/70x24'''' | 14.00x24'''' |
