TOWER LIGHT LUX M10/M11
Strong and Durable Machine

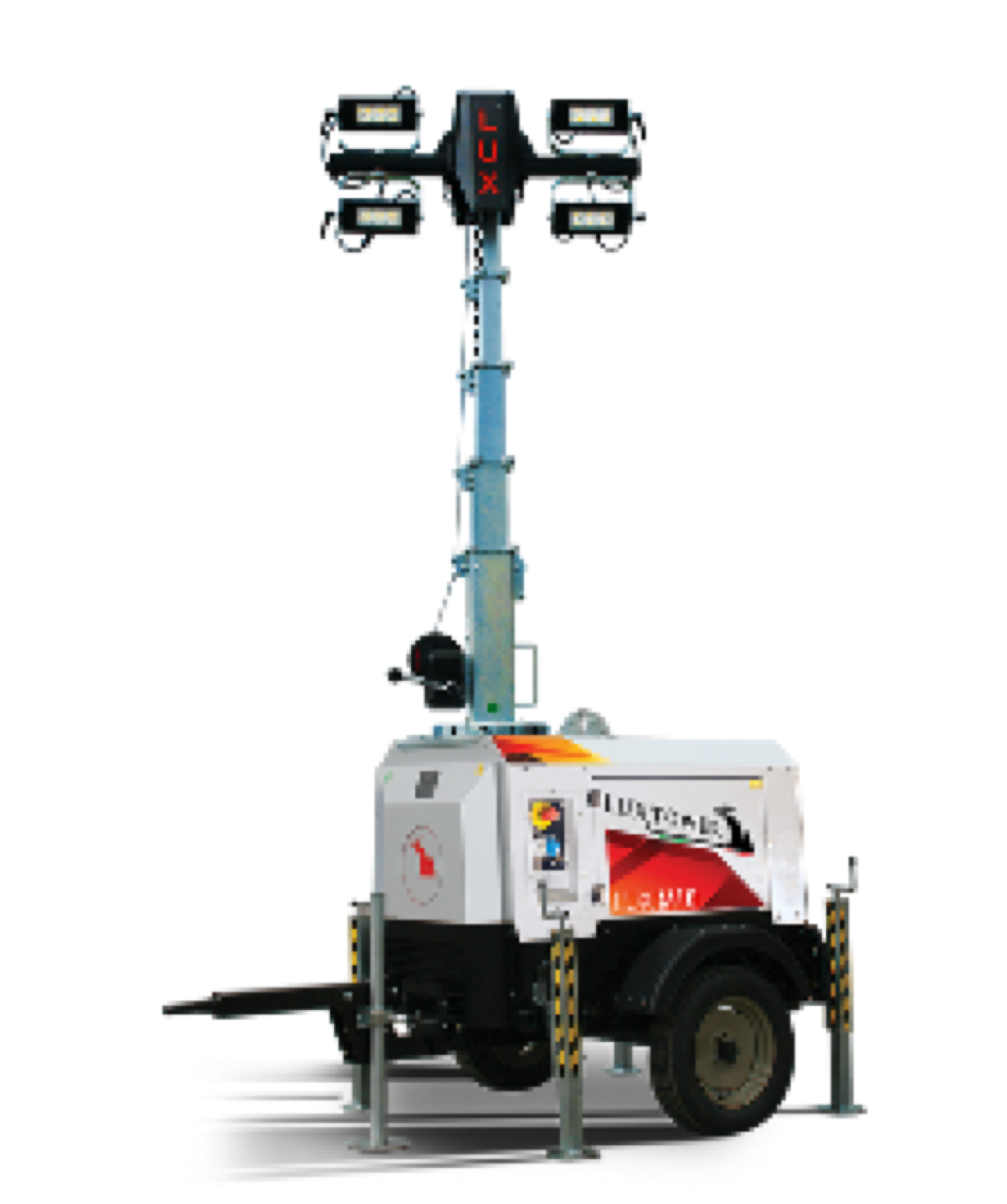

This reliable machine is built to last. It represents one of the standout achievements in our development journey, featuring innovative LED technology. The lighting tower comes with an integrated generator, a galvanized vertical telescopic mast with a manual lifting system, and is equipped with four 160W Multi LED floodlights (manufactured in Europe).
| LUX M10 | LUX M11 | |
| ORIGIN | 🇮🇹 | 🇮🇹 |
| DRY WEIGHT | 681 Kg | 690 Kg |
| MAST ROTATION | 340° | 340° |
| LIFTING SYSTEM | Manual | Manual |
| LAMPS | 4 X 160 W - Multi Led | 4 X 300 W - Multi Led |
| ILLUMINATED AREA | 3300 m² | 4700 m² |
| OPTIONAL | LS version Kit [ DSE3110 control panel + Light sensor] | LS version Kit [ DSE3110 control panel + Light sensor ] |
| DSE401 with remote control and tracking | DSE401 with remote control and tracking | |
| Bunded tank | Bunded tank |
| LUX M10 | LUX M11 | |
| ENGINE MODEL | Kubota Z482 | 2 cyl | liquid cooled | Kubota Z482 | 2 cyl | liquid cooled |
| FUELING | Diesel | Diesel |
| R.P.M | 1 500 | 1 500 |
| NOISE LEVEL | 65 db at 7 meters | 65 db at 7 meters |
| TANK CAPACITY | 80 L | 80 L |
| RUNNING TIME | 145 h | 145 h |
| FUEL CONSUMPTION | 0.55 1/h | 0.55 1/h |
| LUX M10 | LUX M11 | |
| ALTERNATOR MODEL | Synchronous | Synchronous |
| POWER GENERATOR | 3.5 kVA – 230 V | 3.5 kVA – 230 V |
| OUTLET SOCKET | 1.3 kVA – 230 V | 1.3 kVA – 230 V |
| ENGINE | Kubota Z482 - 2 cyl - 1500 rpm | Kubota Z482 - 2 cyl - 1500 rpm |
| COOLING SYSTEM | Water | Water |
| TANK CAPACITY | 80 L | 80 L |
| LUX M10 | LUX M11 | |
| DIMENSIONS MIN. | 2390 X 1380 X 2560 (mm) | 2390 X 1380 X 2640 (mm) |
| DIMENSIONS MAX. | 2390 X 2370 X 9000 (mm) | 2390 X 2370 X 9000 (mm) |
| TOTAL WEIGHT WITHOUT FUEL | 690 kg | 690 kg |
| MAXIMUM HEIGHT | 9 m | 9 m |
- Metal body is first galvanized then powder coated by polyester to avoid corrosion.
- Vertical telescopic mast is galvanized and equipped with anti-shock plastic pads
- Metal body is equipped with a double asymmetrical air vents to prevent annoying jams
- Damping cage on Linz Alumen alternator to contain voltage surges
- Both control panels and projectors have plug & play system for an easier replacement in case of damage.
- Muffler is placed into an isolated metal case to prevent undue overheating
THE LED BENEFIT
The application of LED technology on lighting towers is oriented towards reducing fuel consumption and CO2 emissions, improving at the same time the performance and life of the lamps.
Unlike metal halide lamps, LED headlights provide:
- Instant lighting without waiting for overheating
- Up to 60% fuel savings compared to the metal halide or halogen
- Lamps life five times longer compared traditional ones.
- Up to 40.000 working hours
- Low environmental impact with about 50% CO2 reductions
- Less spare parts replacement
- No ballast, no ignitors, floodlight glass, no lamps
