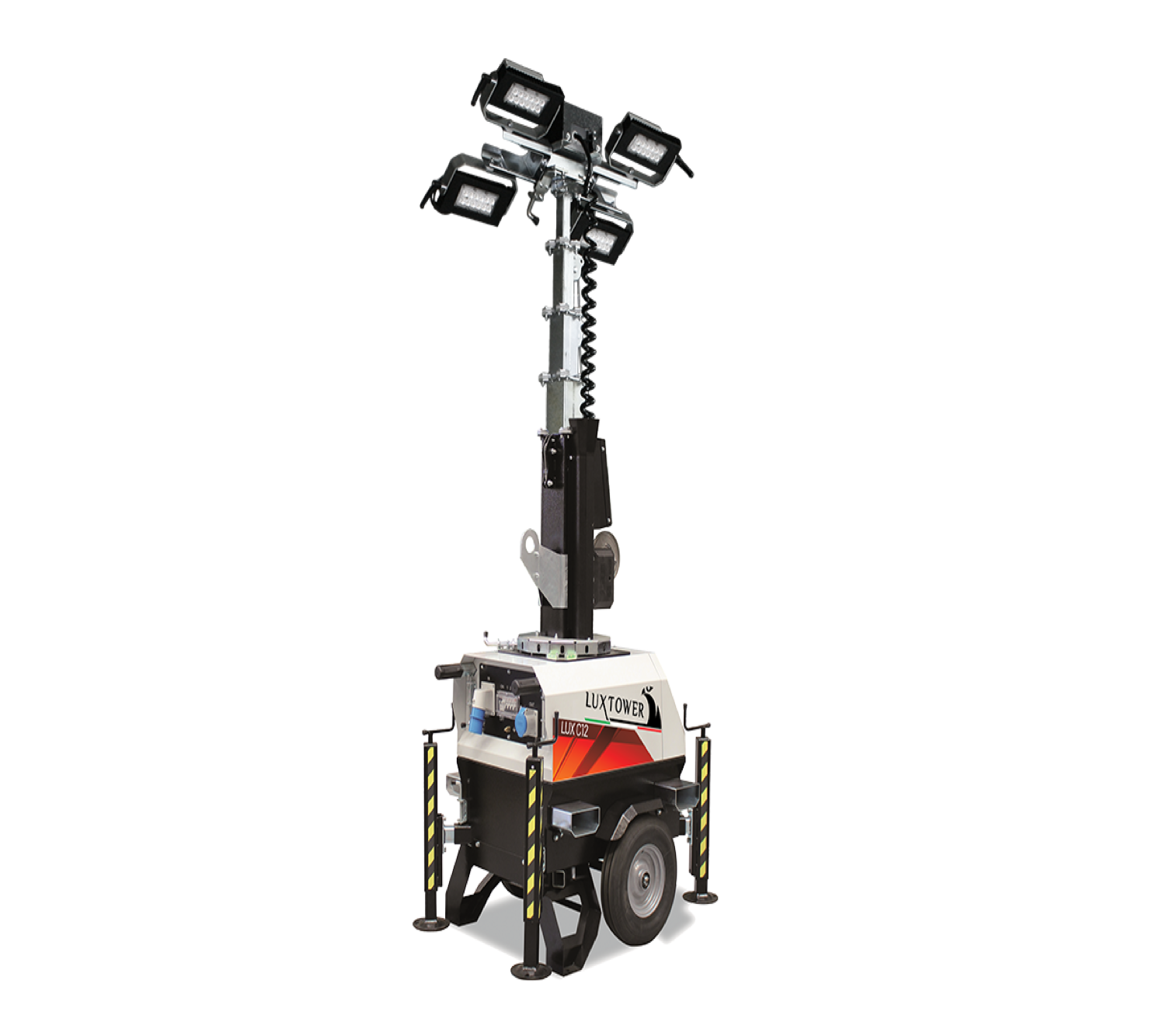

TOWER LIGHT LUX M2/M3
Our tower lights are robust and durable machines designed for efficiency and ease of use. They feature an integrated generator and are equipped with four 1000W metal halide floodlights mounted on a galvanized vertical telescopic mast with a manual lifting system.
Renowned for their reliability, these machines deliver high performance, utilizing the latest technologies to maximize the potential of the combustion engine.
| LUX M2 (Lombardini-Kohler) | LUX M3 (Kubota) | |
| ORIGIN | 🇮🇹 | 🇮🇹 |
| DRY WEIGHT | 770 Kg | 800 kg |
| MAST ROTATION | 340° | 340° |
| LIFTING SYSTEM | Manual | Manual |
| LAMPS | 4 X 1000 W - Metal Halide | 4 X 1000 W - Metal Halide |

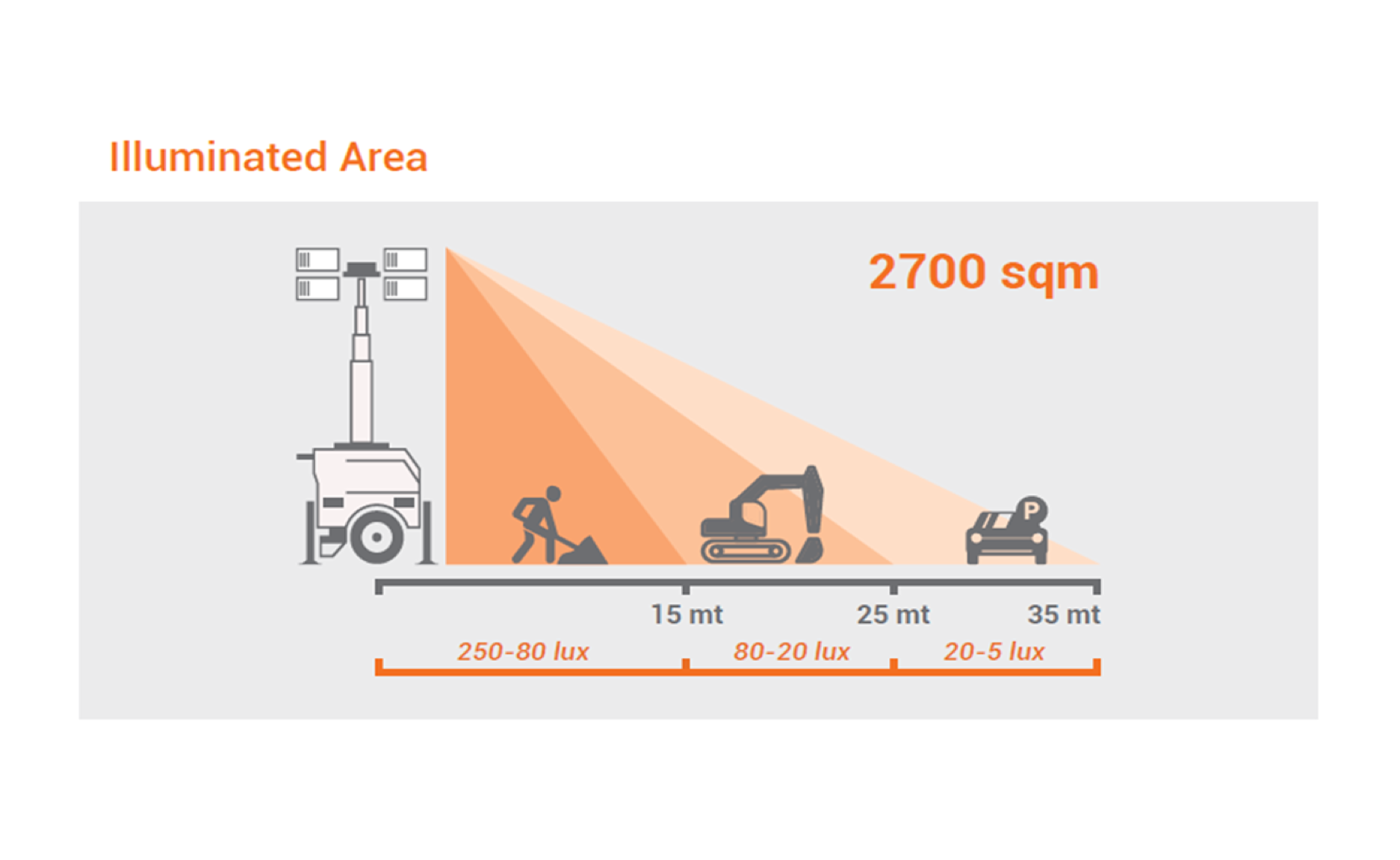

| ILLUMINATED AREA (5 lux min.) | 4200 m² | 4200 m² |
| OPTIONAL | Main/ generator switch/ Bunded tank | Main/ generator switch/ Bunded tank |
| LUX M2 (Lombardini-Kohler) | LUX M3 (Kubota) | |
| ALTERNATOR MODEL | Synchronous | Synchronous |
| POWER GENERATOR | 8 kVA – 230 V | 8 kVA – 230 V |
| OUTLET SOCKET | 3 kVA - 230 V | 3 kVA - 230 V |
| COOLING SYSTEM | Water | Water |
| LUX M2 (Lombardini-Kohler) | LUX M3 (Kubota) | |
| ENGINE MODEL | Lombardini-Kohler KDW1003 | 3 cyl | liquid cooled | Kubota D1105| 3 cyl | liquid cooled |
| FUELING | Diesel | Diesel |
| R.P.M | 1 500 | 1 500 |
| NOISE LEVEL | 65 db at 7 meters | 65 db at 7 meters |
| TANK CAPACITY | 80 L | 80 L |
| RUNNING TIME | 43 h | 43 h |
| FUEL CONSUMPTION | 1.85 1/h | 1.85 1/h |
| LUX M2 (Lombardini-Kohler) | LUX M3 (Kubota) | |
| DIMENSIONS MIN. | 2 560 x 1380 x 2580 | 2 560 x 1380 x 2580 |
| DIMENSIONS MAX. | 2 560 x 2 550 x 8 500 | 2 560 x 2 550 x 8 500 |
| MAXIMUM HEIGHT | 9 m | 9 m |
| LUX M2 (Lombardini-Kohler) | LUX M3 (Kubota) | |
| DIMENSIONS MIN. | 2 560 x 1380 x 2580 | 2 560 x 1380 x 2580 |
| DIMENSIONS MAX. | 2 560 x 2 550 x 8 500 | 2 560 x 2 550 x 8 500 |
| MAXIMUM HEIGHT | 9 m | 9 m |
- The metal body is first galvanized and then powder-coated with polyester to prevent corrosion.
- The vertical telescopic mast is galvanized and features anti-shock plastic pads.
- The metal body includes double asymmetrical air vents to minimize blockages.
- A damping cage on the synchronous alternator helps contain voltage surges.
- Both control panels and projectors are designed with a plug-and-play system for easy replacement in case of damage.
- The muffler is enclosed in an insulated metal case to prevent overheating.
