EGG LAYING MACHINE

EGG LAYING MACHINE FOR CONCRETE PRODUCTS

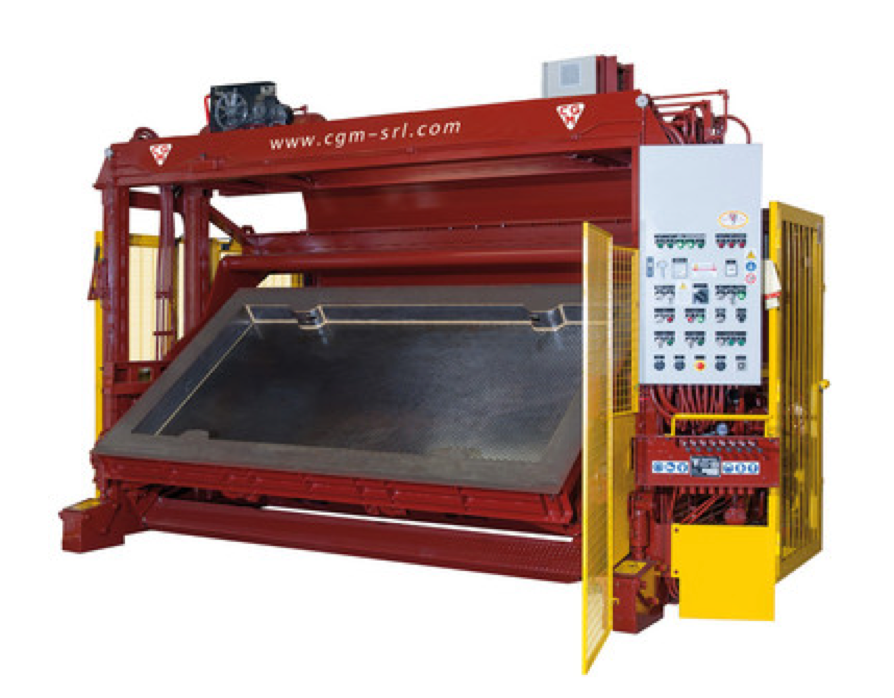

EGG LAYING MACHINE

The Egg Laying machine utilizes a hydraulic mold system to manufacture concrete products. This system can be easily adjusted to accommodate various designs and dimensions, enabling the production of items such as New Jersey barriers, culverts, gutters, manholes, and kerbstones.

This mobile machine is specifically designed to produce large-sized vibrated concrete products, which can reach widths of up to 3 meters. It is also capable of producing reinforced concrete items in a continuous cycle. The machine is user-friendly, reliable, and boasts a high production capacity.

The demolding process for the concrete products is immediate and achieved by overturning the mold. Additionally, changing the molds is a simple and fast process, allowing for diversified production to be carried out on the same day using the same machine.

gomes restaurant

ORIGIN

🇮🇹

MAXIMUM DIMENSION OF PRODUCT

300 x 140 x H 110 cm

HOPPER LOADING HEIGHT

236 cm

MIXER CAPACITY REQUIREMENT

1.5 m³

RATED POWER

15 kW

INSTALLED VIBRATION

Electronic, with inverter

MACHINE DIMENSIONS

490 x 403 x H 323 cm

PRODUCTION CYCLE AVERAGE TIME

3 / 6 minutes















BATCHING PLANT  Moisture Control
Automation Control
Aggregate Weighing System
Planetary Mixer
PLANETARY MIXER SUGGESTED CAPACITY   1.5 m³

MINIMUM WORKING SPACE

(for 2 days suggested)

2,000 m2
FORKLIFT MINIMUM CAPACITY   3,000 kg
FLAT CONCRETE FLOOR 15/20 cm of thk.
No bumps
No obstacles
No slopes
WORKSHOP TOOLS Welder
Grinder
Shovel
Broom
Trowel
ELECTRIC POWER SUPPLY 15 kw

FEED HOPPER

(to attach to the forklift)

 1.5 m³

SPECIAL CLAMPS

(to attach to the forklift)

Handling of concrete products after production

TROWELLING DEVICE

(for CGM machines)

To smother up the bottom surface

PRESS DEVICE

(for CGM machines)

To make special shapes on the bottom surface
