CLIMBING TYPE PLACING BOOM

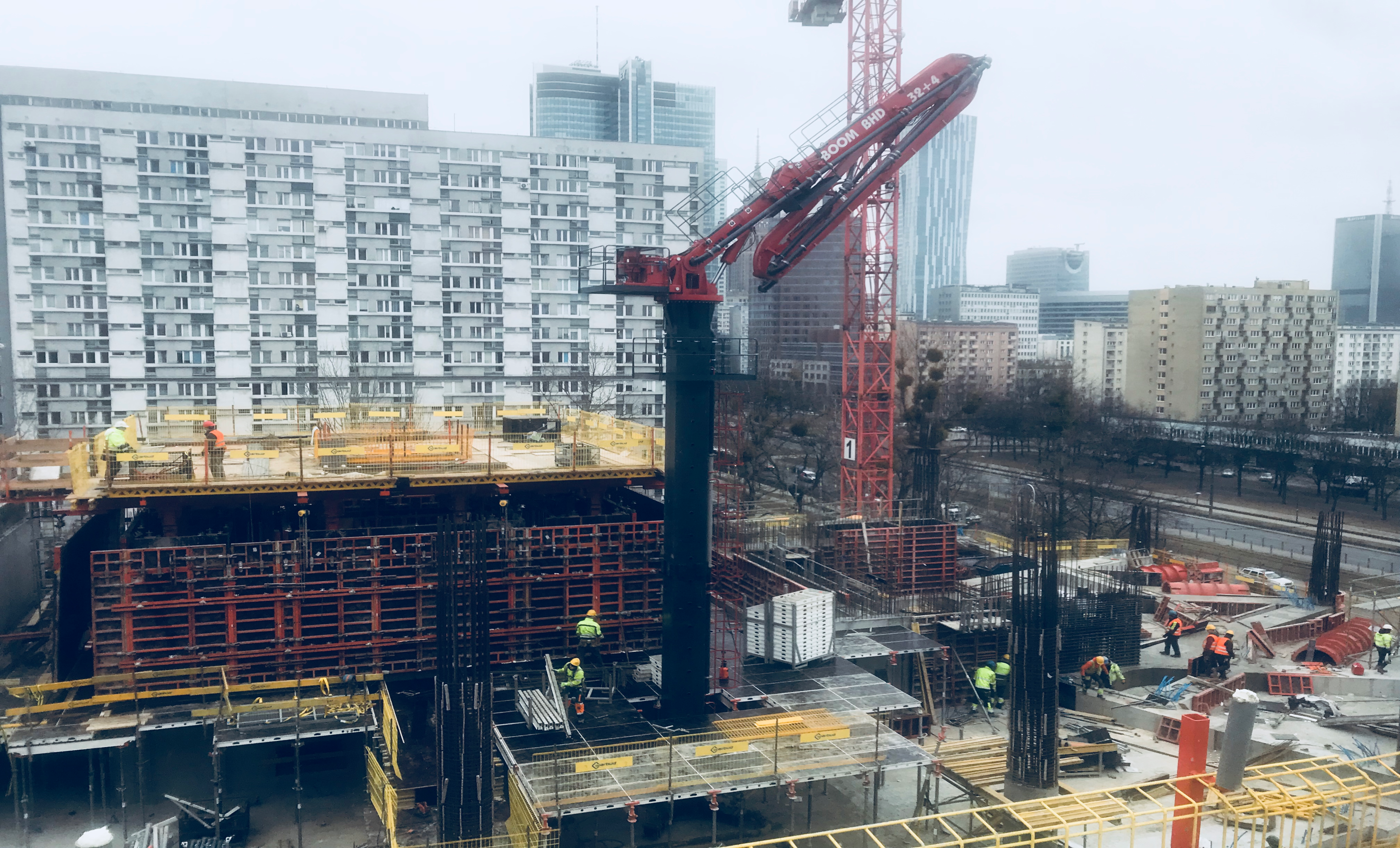

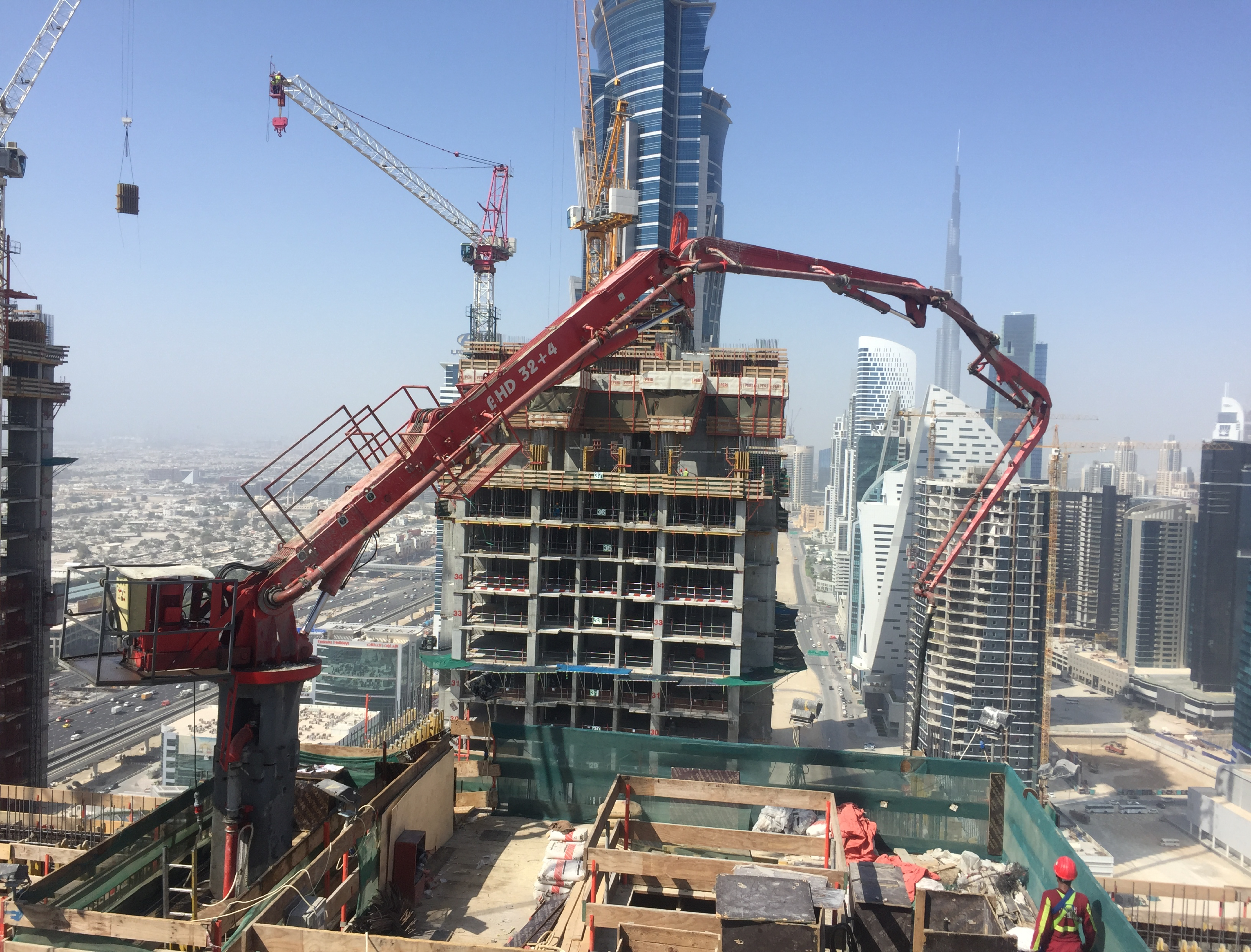

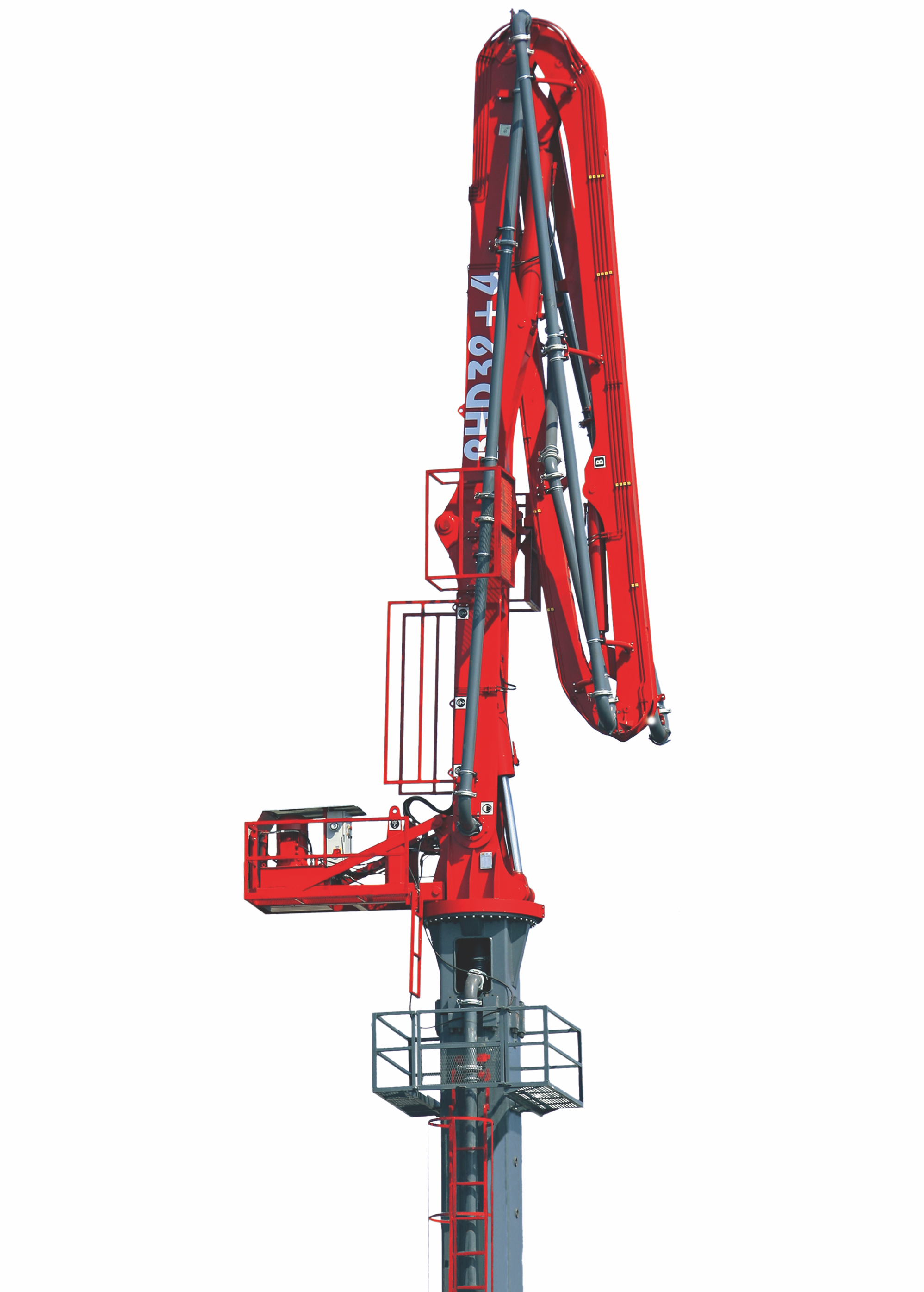

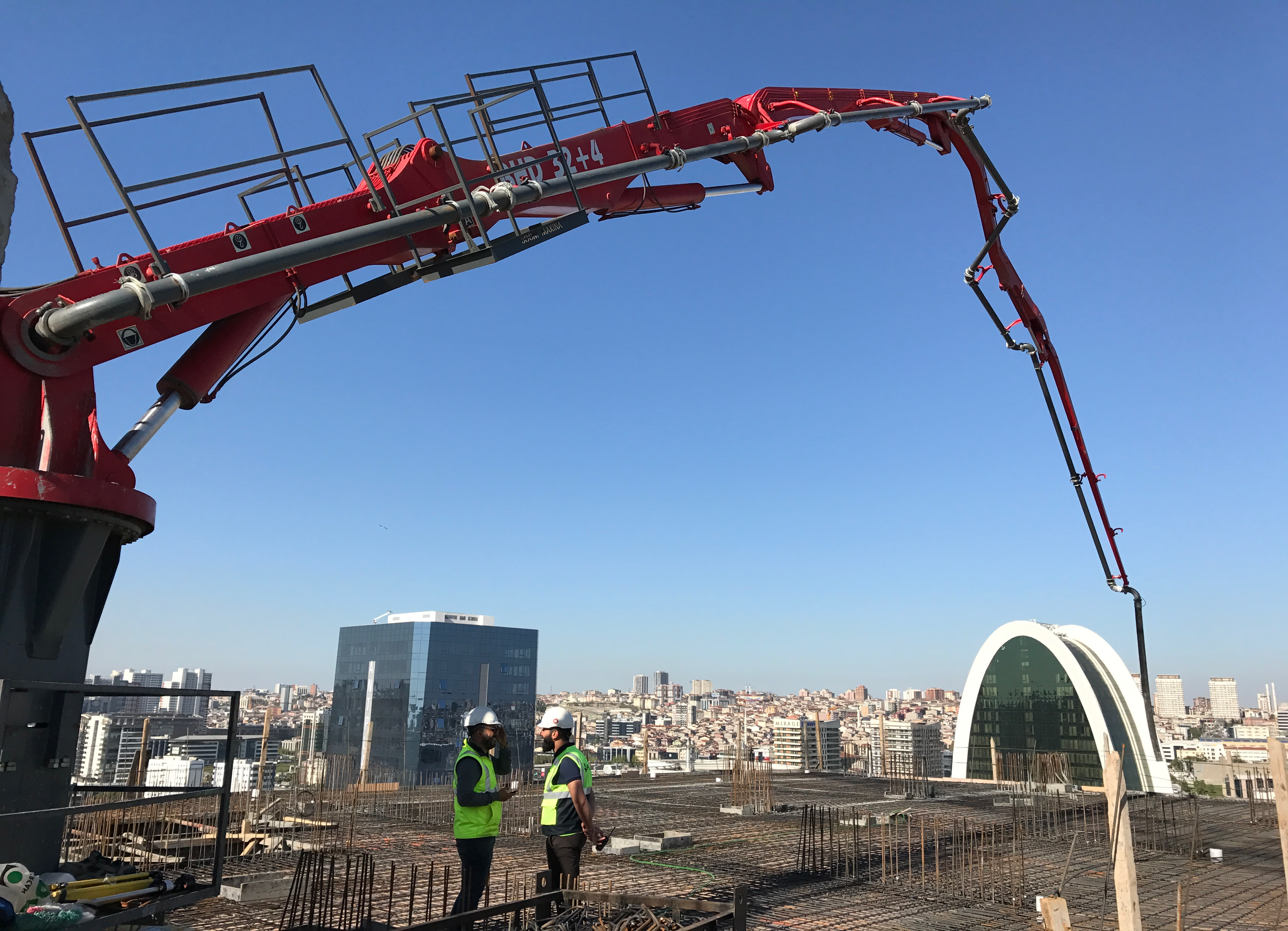

The self-climbing concrete placing boom is a unique type of equipment that is installed in the gaps between floors during building construction. It does not rely on a tower crane for operation, as it utilizes a hydraulic system. The tower crane is only necessary during the initial installation and dismantling processes.

This placing boom machine offers a variety of ranges, with options available up to 32+4 meters.

gomes restaurant
gomes restaurant
gomes restaurant
gomes restaurant
gomes restaurant gomes restaurant gomes restaurant gomes restaurant



DESCRIPTION Units BHD 24R3 BHD 32R4 BHD 32R3 BHD 32Z4 BHD 36R4
POWER kW 15 18.5 18.5 18.5 18.5
ELECTRIC POWER  V 380V/ 50 Hz 380 V 380 V 380V/ 50 Hz
Description Units BHD 24R3 BHD 32R4 BHD 32R3 BHD 32Z4 BHD 36R4
MAX. RADIUS OF PLACING BOOM m 24 32 32 32 36
FREE STANDING HEIGHT  m 20.6 20.7 20.7 20.7 20.7
SLEWING RANGE  deg. 400 max 400 max 400 max 400 max 400 max
TOTAL WEIGHT  kgs 14 000 16 600 15 950 17 106 17 060
MAST DIMENSIONS  (m x m x m) 0.75 x 0.75 x 6 0.75 x 0.75 x 6 0.75 x 0.75 x 6 0.75 x 0.75 x 6 0.85 x 0.85 x 10
WEIGHT OF HEAVIEST COMPONENT kgs 3 500  4 500  4 800 4 600 5 330
CONTROLS    Cable Remote Control
Radio Remote Control
Description Units BHD 24R3 BHD 32R4 BHD 32R3 BHD 32Z4 BHD 36R4
SYSTEM PRESSURE MPa 30 30 30 30 30
FLOW  cm3/cycle  16 22 22 22 22
OIL TANK CAPACITY  Iiters 100 160 160 160 180
Description Units BHD 24R3 BHD 32R4 BHD 32R3 BHD 32Z4 BHD 36R4
BOOM TYPE   "R" Type "Z" Type "R" Type
DELIVERY PIPELINE DIAMETER mm 125 125 125 125
LENGTH OF END HOSE m 3 - 4 3 4 4
Description Units BHD 24R3 BHD 32R4 BHD 32R3 BHD 32Z4 BHD 36R4
CLIMBING TYPE   Hydraulic Hydraulic Hydraulic Hydraulic
INTERNAL CLIMBING STEP DISTANCE  m 0.6 0.6 0.6 0.6 0.6
FLOOR FRAME   Hole Prepared in Floor
LIFT SHAFT DIMENSIONS (m x m) 0.95 x 0.95 0.95 x 0.95 0.95 x 0.95 0.95 x 0.95 0.95 x 0.95
