TRUCK MOUNTED PUMPS

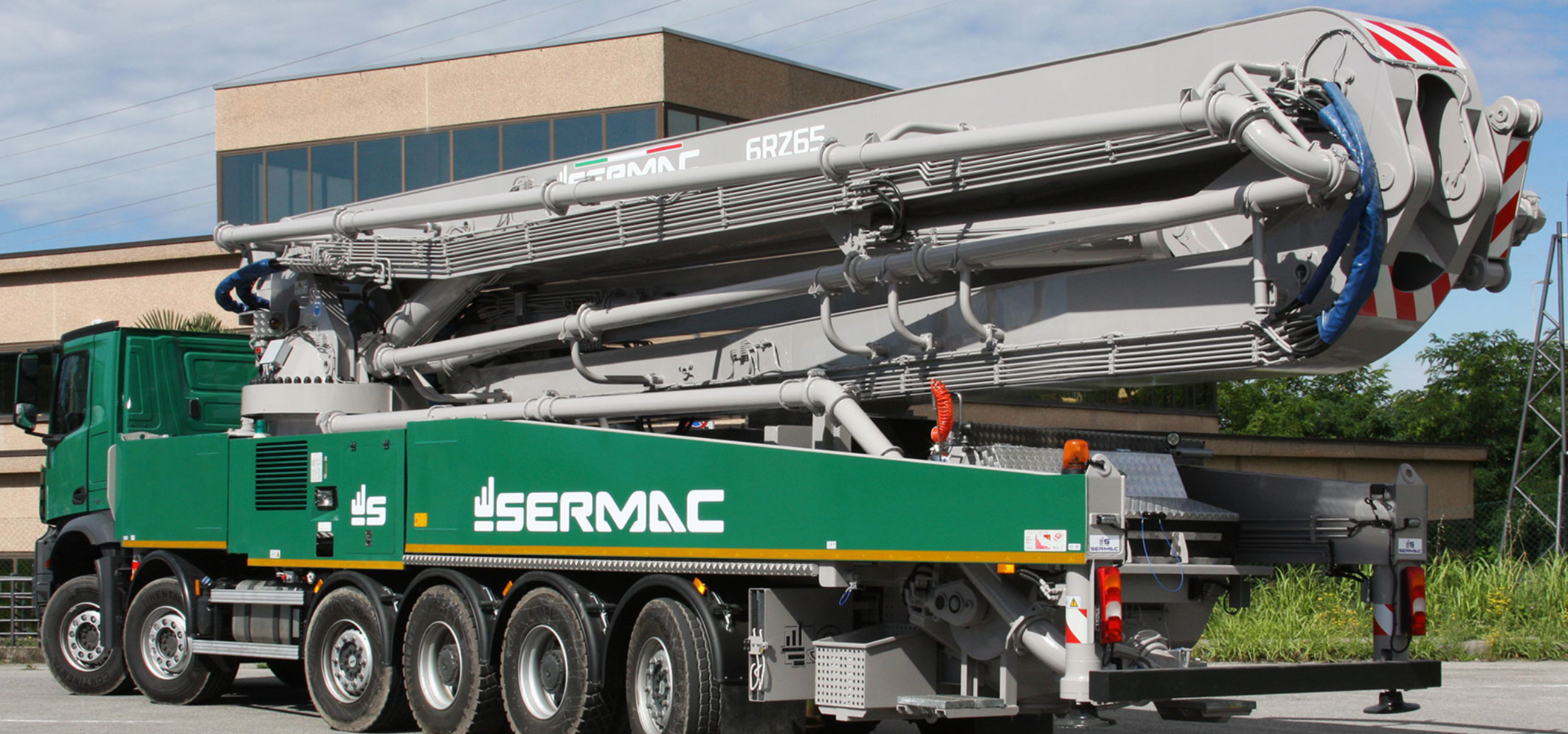

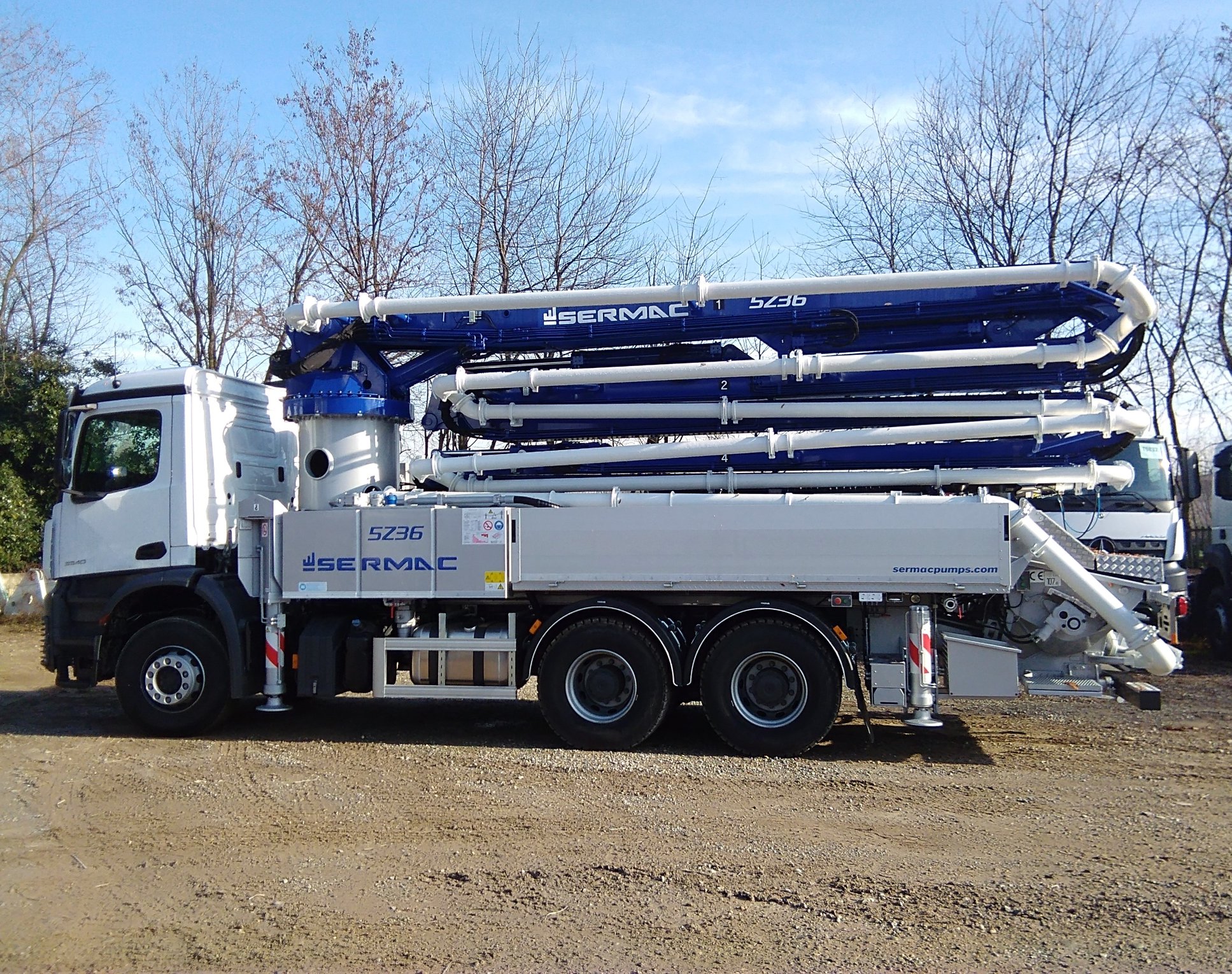

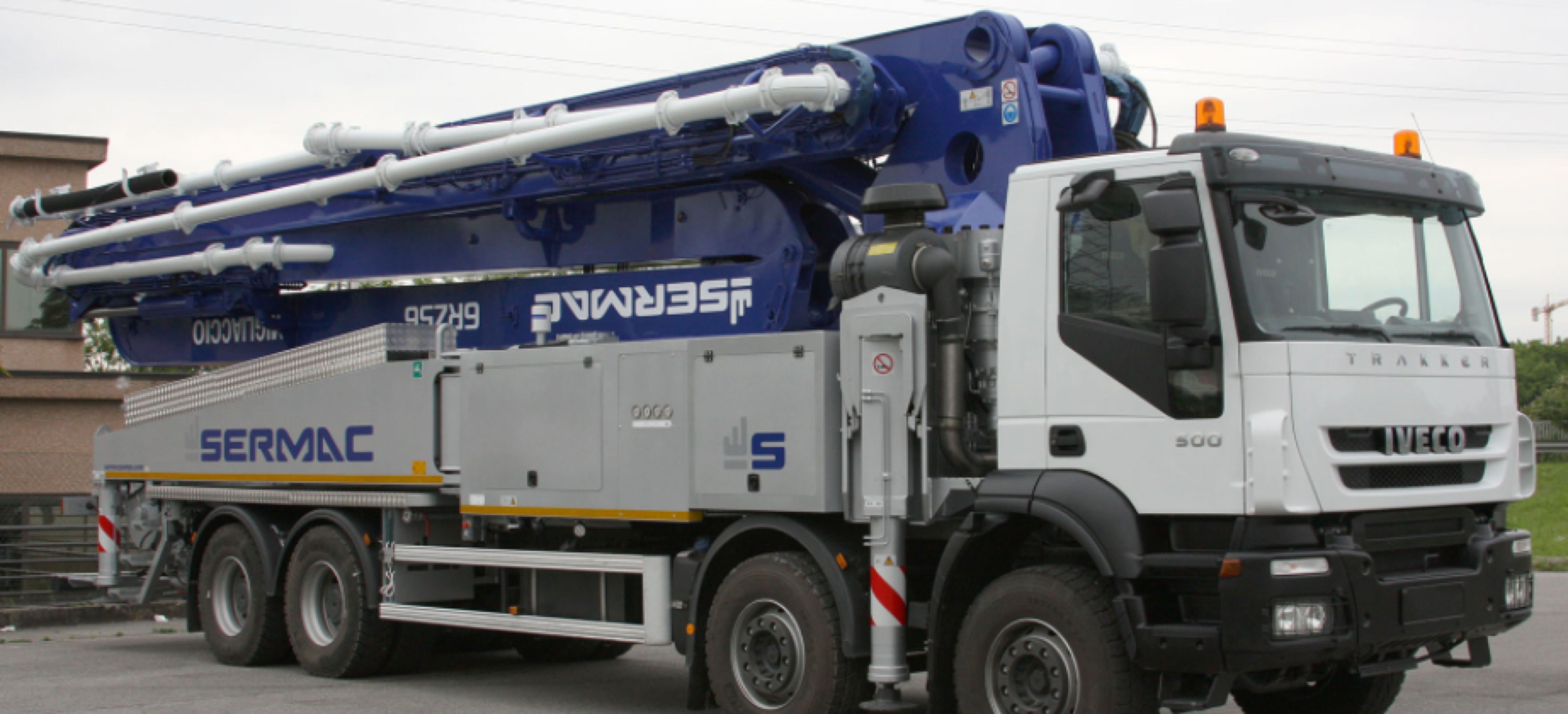

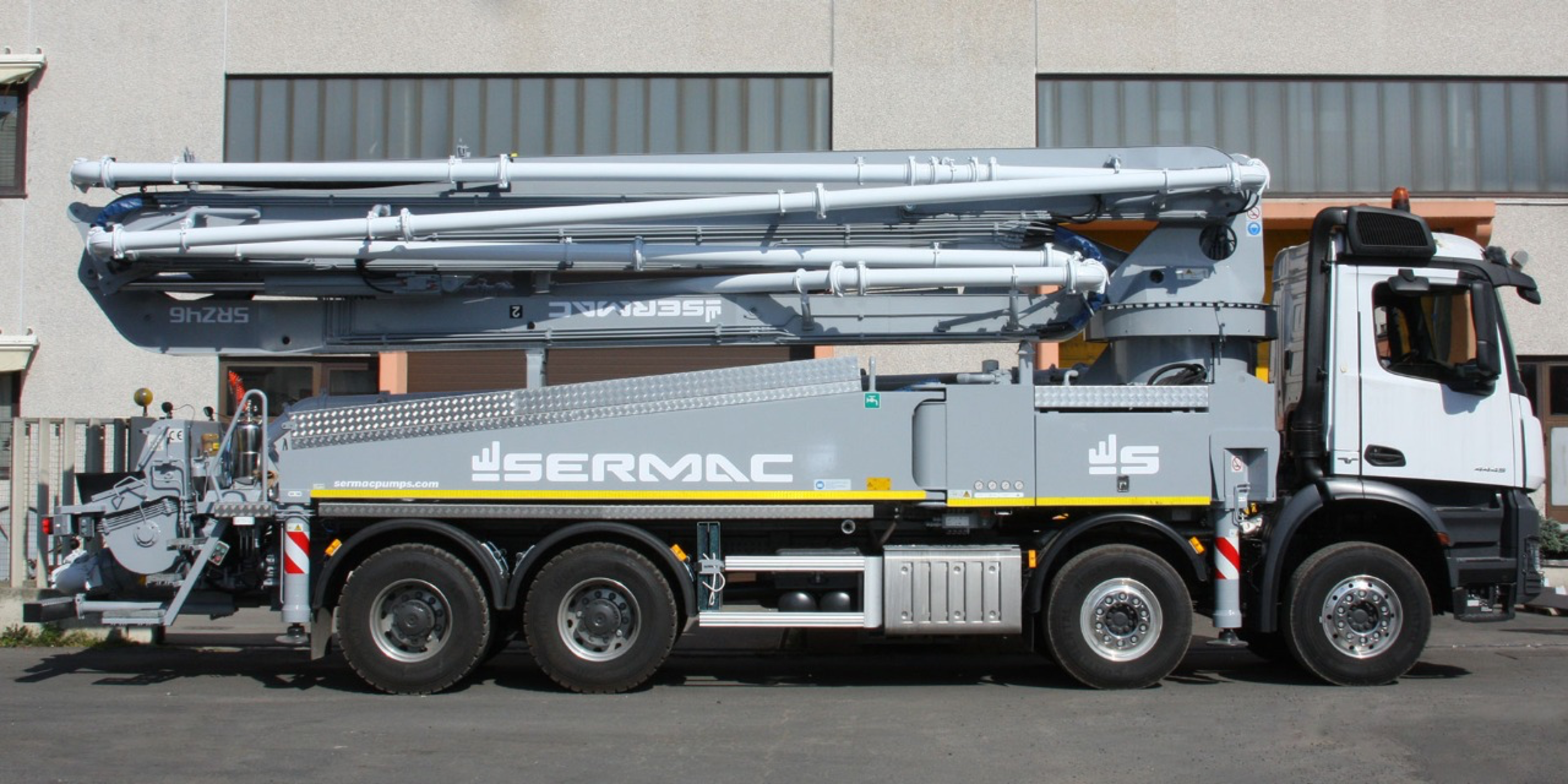

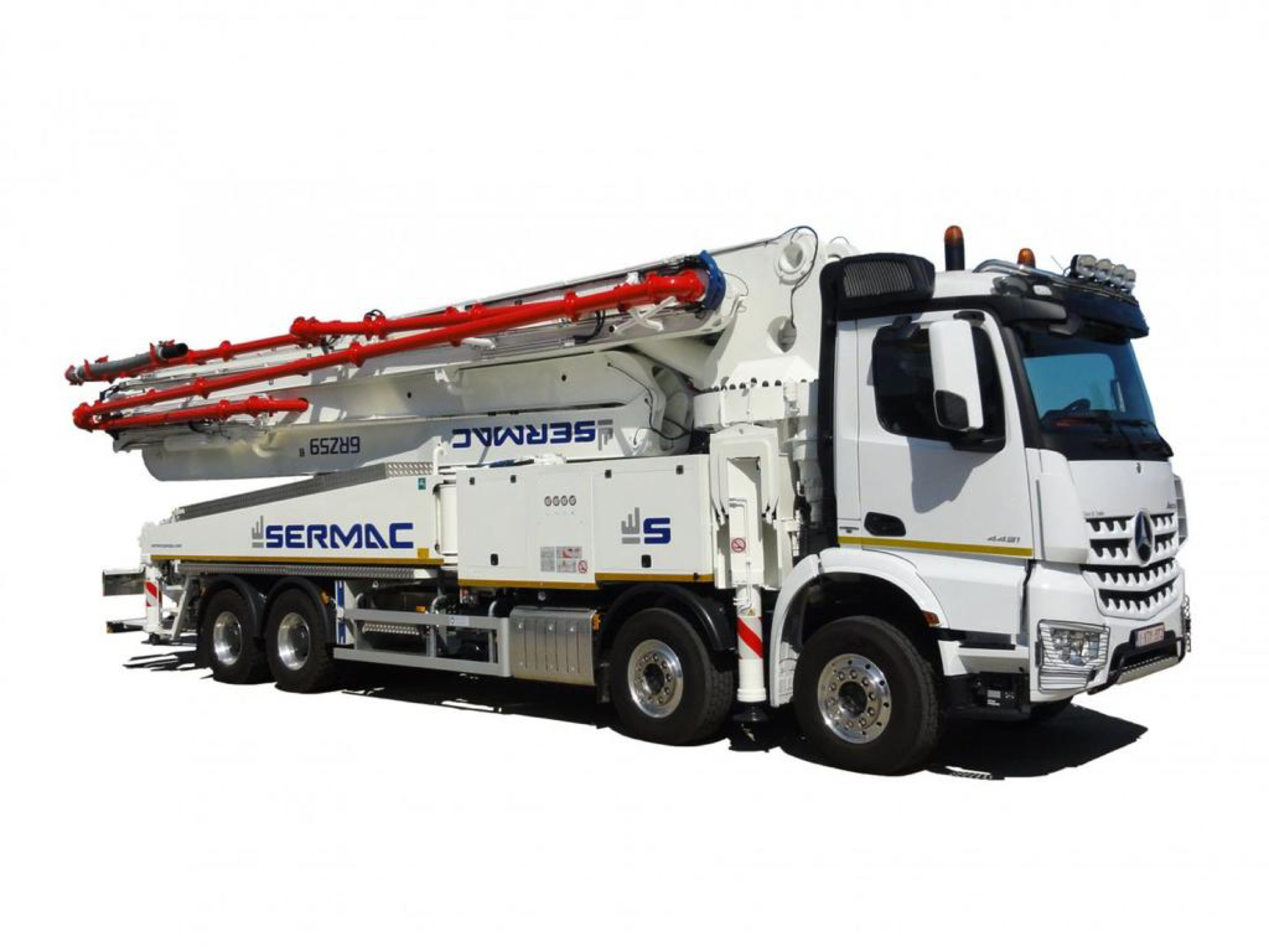

SERMAC provides a comprehensive selection of concrete pumps featuring placing booms such as ZENITH and SIRIO. These pumps are available in various heights ranging from 20m (4 sections) to 65m (6 sections), with different fold configurations in "ZR," "Z," and "RZ."
The pumping unit utilized by SERMAC incorporates a specialized concrete S-valve, which boasts an innovative geometry designed to deliver exceptional performance while requiring minimal maintenance. Through years of dedicated research and rigorous testing in demanding working conditions, we have achieved impressive results in terms of flexibility and reliability. The concrete S-valve has an 8" diameter (S8), ensuring it fully satisfies customer requirements in terms of capacity and pressure.
THEORETICAL CONCRETE OUTPUT
CONCRETE PRESSURE
MODEL TYPE
VALVE
PISTON
ORIGIN
STROKE LENGTH
| MODEL | 4Z27 | 4Z38 | 5Z33 | 5Z42 | 5RZ46 | 5RZ51 | 6RZ56 | 6RZ60 | 6RZ65 |
| MAX. VERTICAL REACH [m] | 26.4 m | 37.15 m | 32.3 m | 41.1 m | 45.1 m | 50.1 m | 55.2 m | 59.2 m | 64.35 m |
| MAX. HORIZONTAL REACH [m] | 22.4 m | 33.15 m | 28.3 m | 37.1 m | 41.1 m | 46.3 m | 51.2 m | 55.2 m | 60.35 m |
| MAX. DOWNWARD REACH [m] | - 16.4 m | -24.8 m | -22.2 m | -28.8 m | -33.1 m | -37.5 m | -39.77 m | -43.04 m | .-50 m |
| SECTION NUMBER | 4 | 4 | 5 | 5 | 5 | 5 | 6 | 6 | 6 |
| MIN. UNFOLDING HEIGHT [m] | 5.9 m | 8.8 m | 6.3 m | 8 m | 9.1 m | 10.75 m | 11.2 m | ||
| NB. OF CYCLES PER MINUTE | 25-27-30 ‘/min | 27 ‘/min | 27 ‘/min | 30 ‘/min | 30 ‘/min | 30 ‘/min | 30 ‘/min | 30 ‘/min | 30 ‘/min |
| PIPELINE | 125 mm | 125 mm |
