WET CONCRETE PLANS

CONCRETE BATCHING PLANTS

WET CONCRETE PLANS

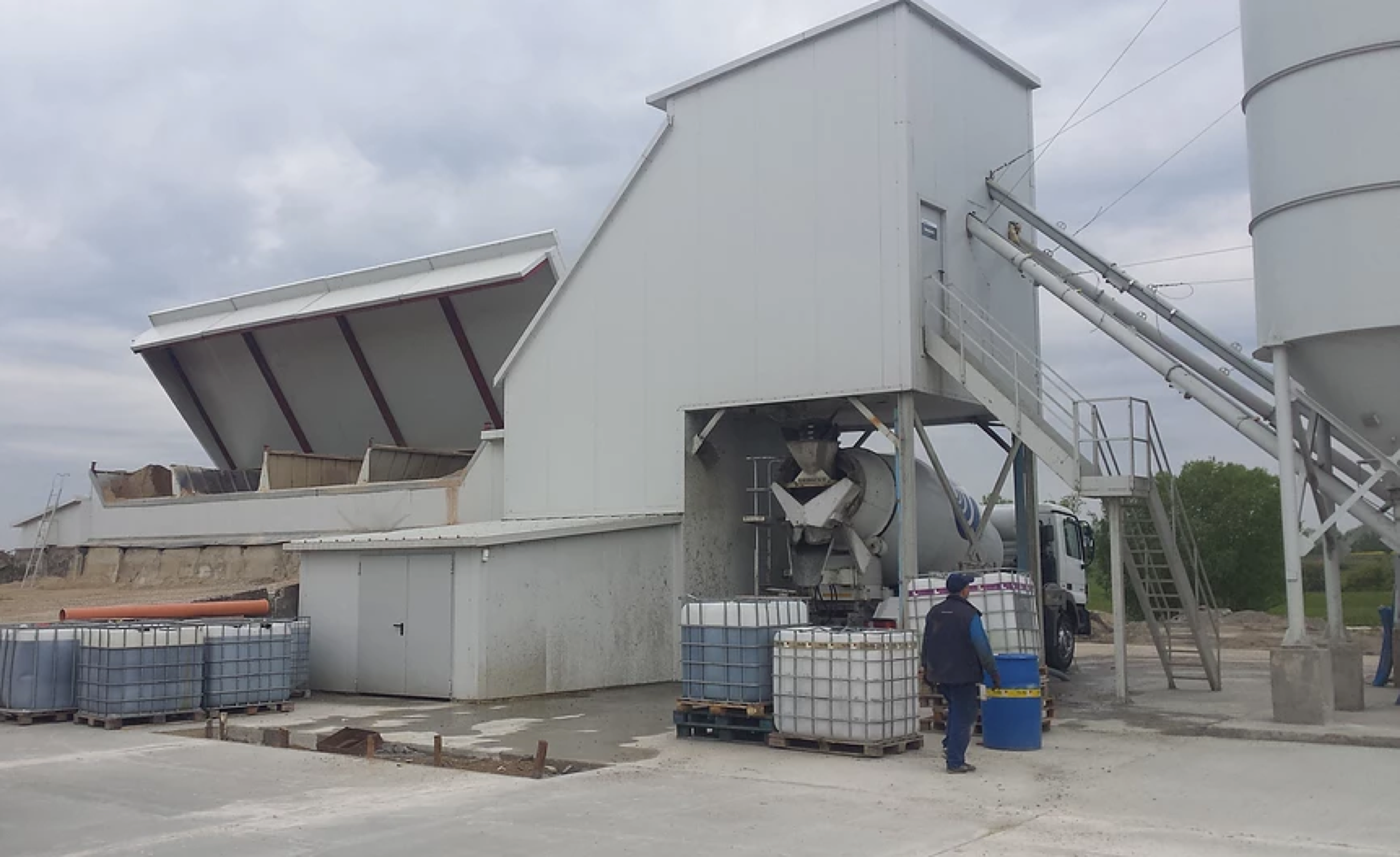

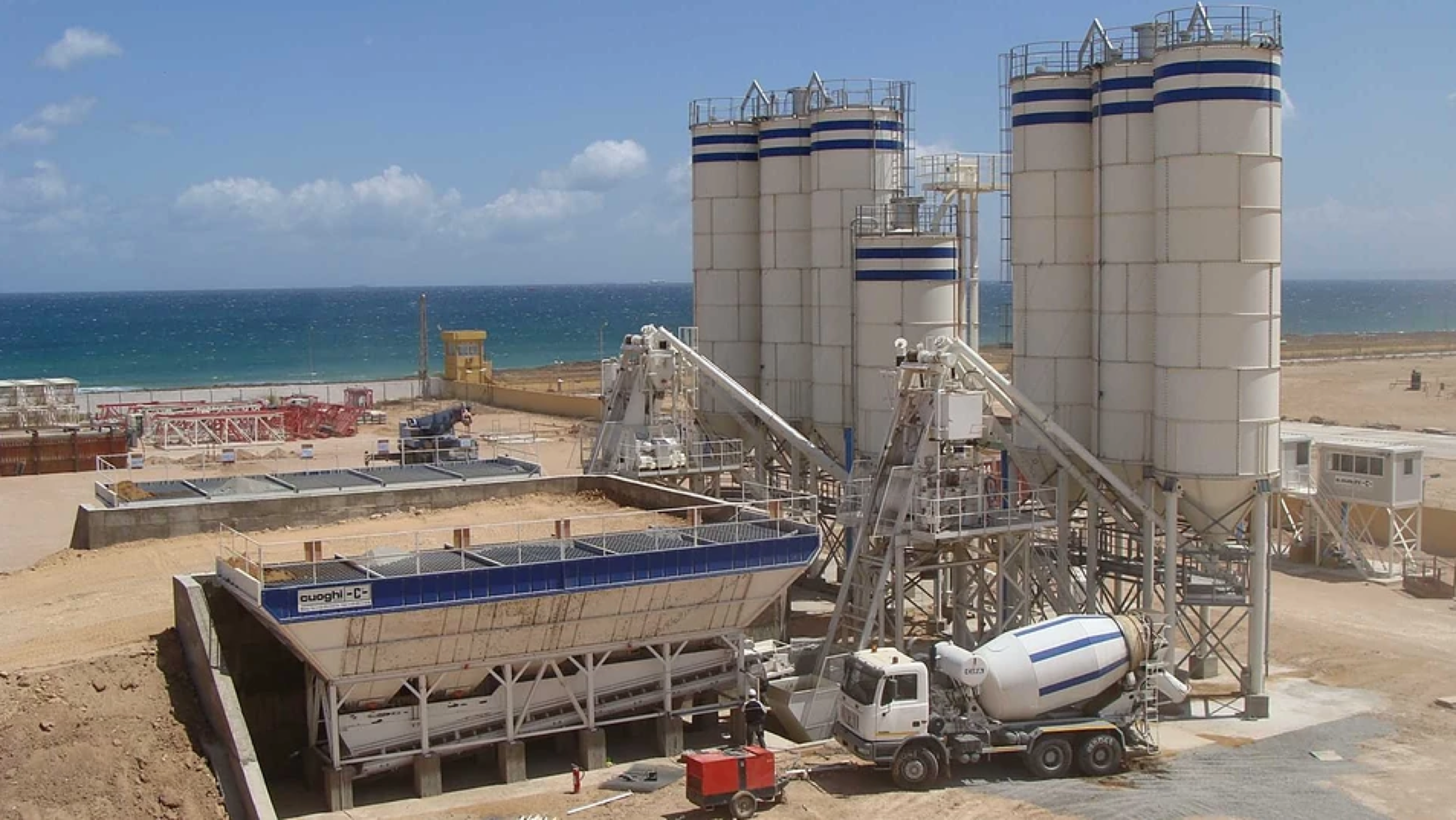

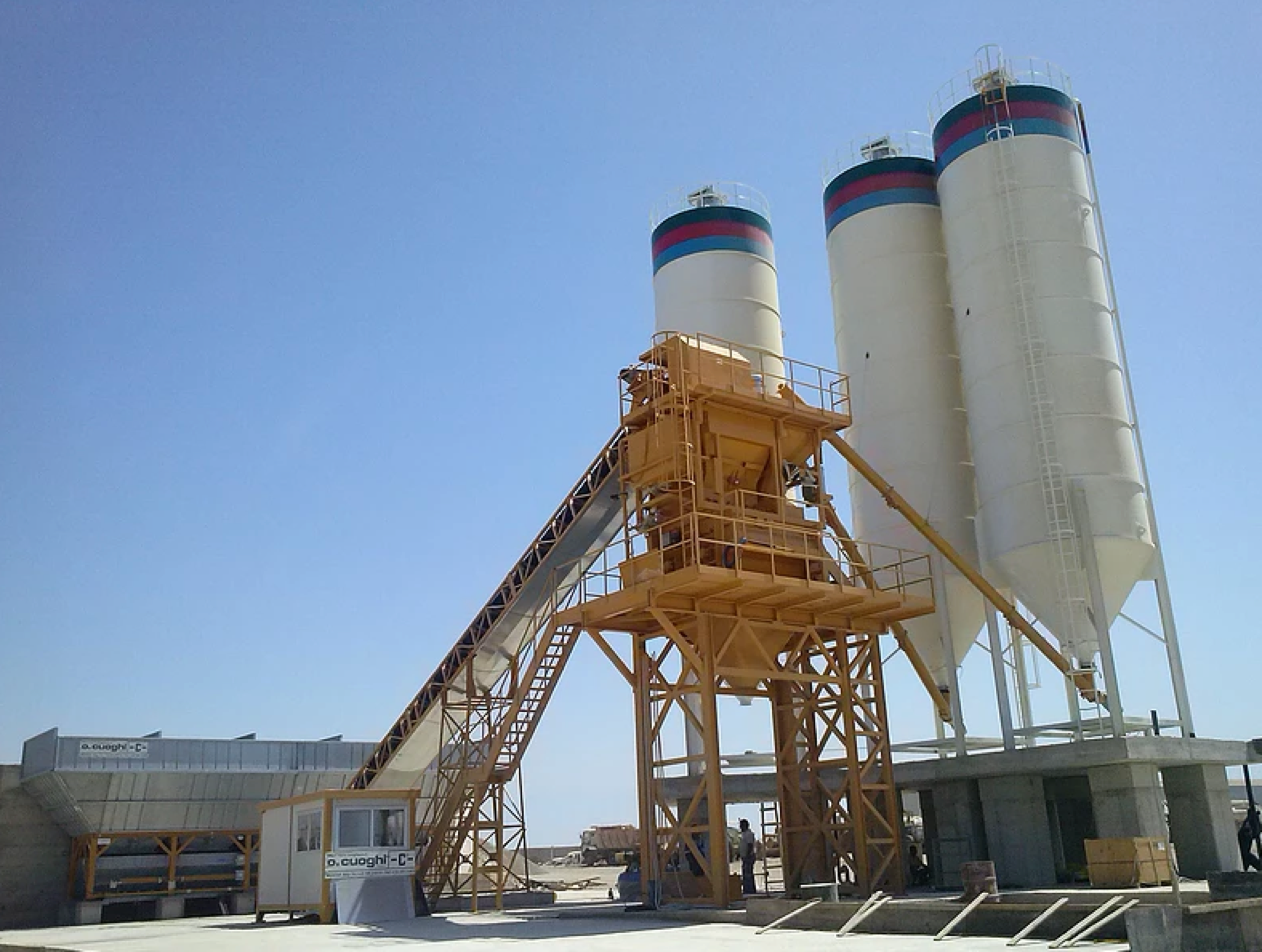

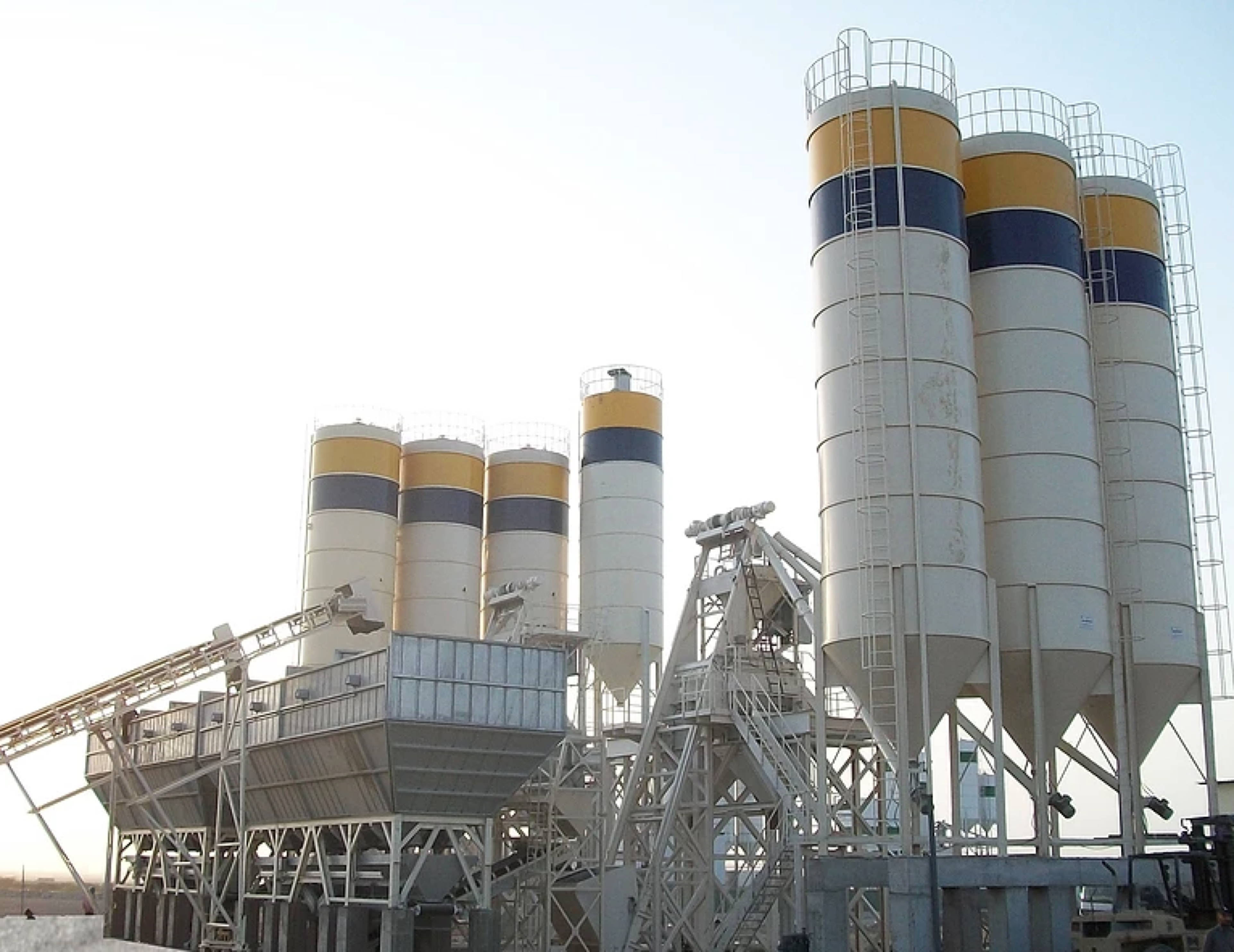

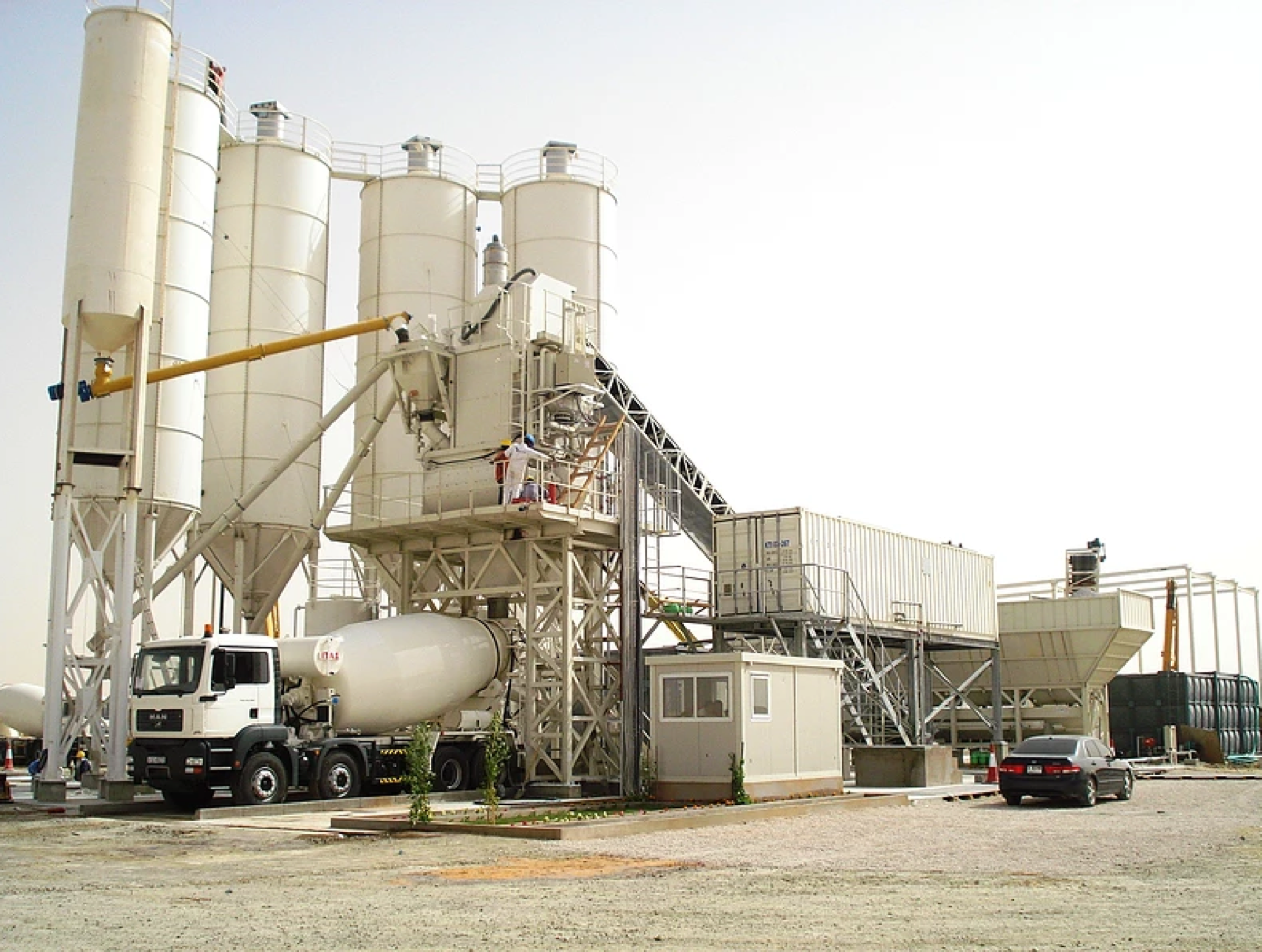

WET plant is furnished with a Stationary Mixer that combines and blends the batched aggregates, water, and binder. At O.CUOGHI S.A.S, our WET plants can be outfitted with various Mixer options, including the Twin Shaft with two horizontally positioned shafts that counter-route, the Planetary Mixer, and the Pan Mixer. Each of these models is equipped with robust gearboxes designed to withstand heavy usage.

We provide an extensive selection of materials known for their high resistance, ranging from thermally hardened steel to spheroidal cast iron. Additionally, our WET plants are equipped with comprehensive safety features to ensure adherence to Safety Standards.


gomes restaurant
gomes restaurant
gomes restaurant
gomes restaurant
gomes restaurant
gomes restaurant gomes restaurant gomes restaurant gomes restaurant gomes restaurant
clint image

AGGREGATE EXTRACTION

CENTRAL OR SIDE
clint image

COMPACTED CONCRETE

OUTPUTS FROM 25 to 240 m3/h
clint image

CONTROL SYSTEM TYPE

Computer auto-control module + PLC SCADA system
clint image

ORIGIN

ITALY
PRODUCTIVITY  AGGREGATE BINS AGGREGATE STORAGE TYPE OF MIXER MIXER SIZE
67 m3/h 4,5,6 From 60 to 150 m3 Planetary or twin shaft  2500/1670
80m3/h 4,5,6 From 80 to 180 m3 Planetary or twin shaft 3000/2000
100 m3/h 4,5,6 From 100 to 180 m3 Planetary or twin shaft 3750/2500
120m3/h 4,5,6 From 100 to 180 m3 Twin Shaft 4500/3000
134 m3/h 4,5,6 From 120 to 180 m3 Twin Shaft 5000/3350
PRODUCTIVITY  AGGREGATE BINS AGGREGATE STORAGE AGGREGATE FEED INTO MIXER TYPE OF MIXER MIXER SIZE
 134 m3/h 4,5,6 From 150 to 240 m3 BELT CONVEYOR Twin Shaft 5000/3350
160 m3/h 5,6 From 150 to 240 m3 BELT CONVEYOR Twin Shaft 6000/4000
180 m3/h 5,6 From 150 to 240 m3 BELT CONVEYOR Twin Shaft 6750/4500
202 m3/h 6 240 m3 BELT CONVEYOR Twin Shaft 6750/4500
225 m3/h 6 240 m3 BELT CONVEYOR Twin Shaft 7000/5000
240 m3/h  6 240 m3 BELT CONVEYOR Twin Shaft 9000/6000
